Make a floor lamp with plastic bottles
Every time I hold a piece of plastic household waste in my hands, I first check the code on the base and then try to think up ways to use it, or repurpose it into something else. There are so many ways to repurpose plastic 2-litre bottles and this floor lamp is just one example out of many projects that I have done and just one more way to reduce household waste.

Posted by Janice A. • Published 30th August 2012

Print • Embed

Jacqueline G. favorited Floor Lamp From Plastic Bottles 23 Dec 22:39
Arienrhod1 favorited Floor Lamp From Plastic Bottles 24 Dec 07:17
dippydiscoball added Floor Lamp From Plastic Bottles to maybe one day 07 Apr 16:50
TARA R. added Floor Lamp From Plastic Bottles to must try this 06 Jan 00:57
katie.lunafish added Floor Lamp From Plastic Bottles to plastic bottle ideas 26 Jul 17:42
Maemi.Gojo added Floor Lamp From Plastic Bottles to Furniture 02 Jun 06:24
Corvii favorited Floor Lamp From Plastic Bottles 28 May 02:47
Ada B. added Floor Lamp From Plastic Bottles to Home Decor 14 Apr 11:59
Sandy R. favorited Floor Lamp From Plastic Bottles 25 Mar 07:28
Alex Poser added Floor Lamp From Plastic Bottles to Home Decor 10 Jan 21:42

Step 1
See the enlarged pic above that shows in detail the section of a plastic
bottle that you will need for this project.

GOOD TO KNOW
Don’t throw the bottom of the bottle away just yet, there are some great projects on the www.Home-Dzine.co.za website that use the top and bottom section of plastic bottles
Step 2
Remove the top section of the bottle with a sharp craft knife and then use a pair of scissors to trim at 5mm below the decorative pattern on the bottle.

If your bottle doesn’t have a decorative pattern - you’re using the wrong brand of bottle!
Step 3
Use a Dremel Multitool and cutting disk to remove the top neck of the bottle. Be careful when doing this as you need to hold the bottle in your hand as you cut.

You could also use a hacksaw to cut off the top of the bottle neck if you don't havea Dremel Multitool.
Step 4
To make one section you need two top sections.

I have found it easier to warm up
the bottom of a section in hot - not boiling - water to soften the plastic and make it easier to join two sections together.

I’m not going to lie and say that fitting the two bottle sections together is easy, but it does get easier the more you do. The trick is getting one section to fit inside the other and the blerry thing keeps popping out. Persevere and you will come right.
Step 5
When you have collected enough sections to make a standing or table lamp, slip
them onto a piece of PVC pipe.

You can use nail polish remover (acetone) to remove the barcode.

Take them outdoors to spray with frosted glass.
Step 6
You don’t necessarily have to spray with frosted glass, you can also leave them clear.

But I find the frosted glass hides any defects and it also matches the base I have found.
Step 7
So that all the sections fit together nicely I used a cardboard tube cut to length and then wrapped this with aluminium self-adhesive tape.

There’s no exact measurement for this, as it depends on how you cut off the tops, but try one size and then adjust as required until you get a nice fit.

Once you peel off the backing it feels exactly like tin foil but with a self-adhesive backing.
Step 8
To wire up the lamp you need to thread the electrical cord through the pipe. Strip the end of each wire no more than 5mm from the end and then twist the wires together so that there are no loose filaments.

Thread the base of the lamp holder onto the top of the pipe and secure the wires to the lampholder connection. Pull on the wires to ensure they are secure and will not come loose and then screw the lampholder together.

Use 5-minute epoxy glue to attach the lampholder to the top of the pipe and leave this to dry for longer than 5 minutes! I don’t know why but sometimes it takes
longer to dry than it should - perhaps temperature affects it.

Just for security and peace of mind, I also wrapped a thin strip of white duct tape around the top as well.
Step 9
To make the lamp stand I bought a piece of 20mm PVC electrical pipe and used a glass light cover that was a leftover from a ceiling fan that was broken and removed. To steady the base I cut circular rounds of 16mm MDF that were glued together and drilled with a 20mm spade bit, so that the pipe would fit into this.
Step 10

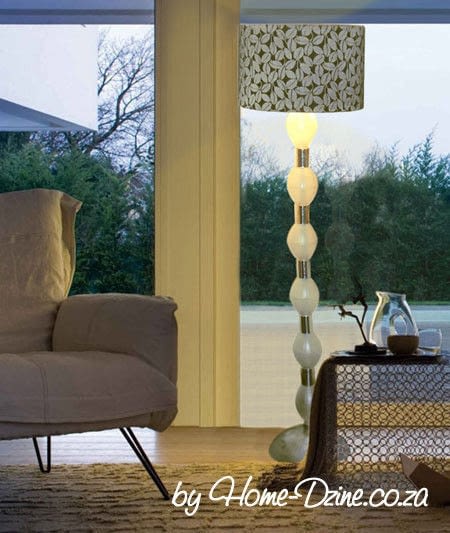

I love my new floor lamp with it’s silver and dark grey lampshade - and it cost practically nothing to make and was quick and easy.
